Description
GFG Series High Efficient Boiling Dryer
WORKING PRINCIPLE
The purified and heated air is introduced from
the bottom by the draft fan and passed through the screen plate. The
fluidization is formed through stirring and negative pressure in the working
room. The moisture will be rapidly evaporated and exhausted so the material can
be dried very fast.
FEATURES
1. The structure of fluidization bed is round so it is smooth inside without cleaning dead corners.
2. There is a stirring device inside of the hopper which can avoid agglomeration of wet material.

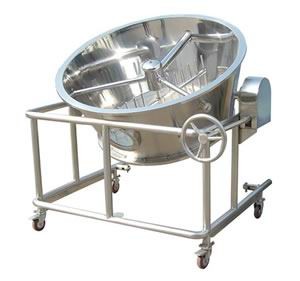

3. The granule is discharged by tipping over the hopper. The discharged system can be designed as per customer requirements.
4. The dryer is operated at the negative pressure and seal conditions. The air is filtered before enters to the dryer. Therefore, it is simple in operation and convenient in cleaning.
5. The drying speed is fast and the temperature is uniform. The drying time is normally 20~30 minutes for each batch.
APPLICATION
This dryer is widely used for the following materials:
1. Damp granules and powder materials in pharmaceutical, foodstuff, feed, chemical, and agrochemical industries.
2. Granules made by extruder, oscillating granulator, and high speed mixing granulator.
3. Special large granule and small blocks that having adhesive property.
4. The material that changes volume during drying process; such as konjak.
TECHNICAL PARAMETERS
|
Item |
Model |
||||||
|
Feeding Capacity(kg) |
60 |
100 |
120 |
150 |
200 |
300 |
500 |
|
Fan Power(kw) |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
45 |
|
Stirring Power (kw) |
0.55 |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
2.2 |
|
Stirring Speed (rpm) |
8～11 |
||||||
|
Steam Consumption (kg/h) |
141 |
170 |
170 |
240 |
282 |
366 |
451 |
|
Working Time(min) |
15-30（According to the material properties） |
||||||
|
Dryer Height(mm) |
2700 |
2900 |
2900 |
2900 |
2900 |
3300 |
3500 |
