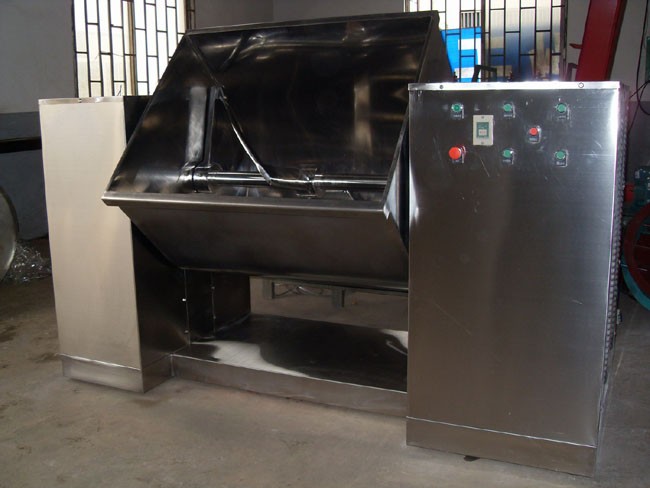

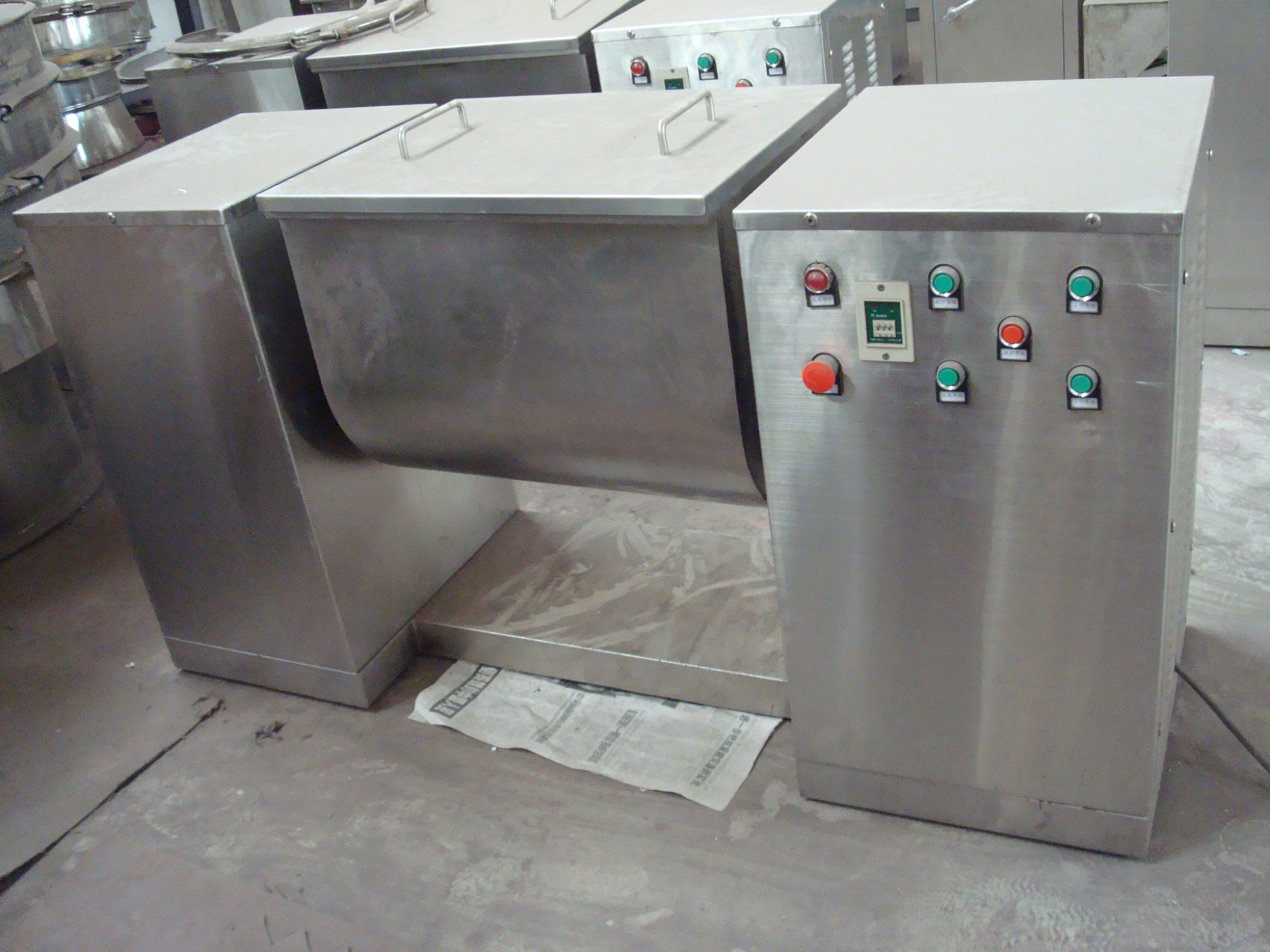

CH Series Groove Mixer
DESCRIPTION
It is particularly suitable for mixing powder or damp materials that required high uniformity and high specific gravity.
FEATURES
1. The raw materials contact area is made by stainless steel.
2. The gap between machine body and blades is small.
3. There is no dead corner in mixer.
4. The stirring shaft has sealing device in both ends to prevent the raw materials leaking out.
APPLICATION
This machine is widely used in many industries such as pharmaceutical industry, foodstuff industry, chemical industry, electronics industry, and etc.
TECHNICAL PARAMETERS
|
Volume（L） |
100 |
150 |
200 |
400 |
|
Motor Power（kw） |
2.2 |
3 |
3 |
5.5 |
|
Stirring Speed（rpm） |
24 |
24 |
24 |
24 |
|
Inverted Angle（×） |
105 |
105 |
105 |
105 |
|
Weight（kg） |
350 |
500 |
650 |
1200 |
|
Overall Dimension（mm） |
1400×500×1000 |
1600×600×1100 |
1800×700×1200 |
2000×820×1460 |
