Description
Classification: Pharmaceutical Engineering Industry

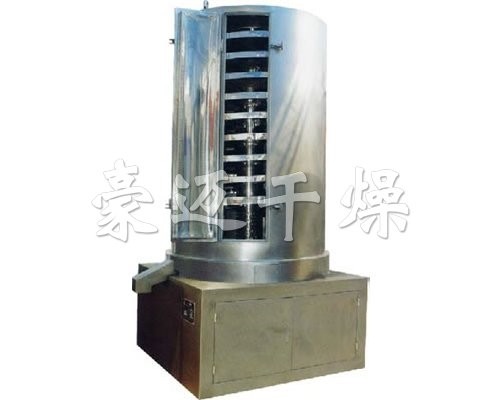

Case overview: Qingdao haizhilin Biotechnology Development Co., Ltd. is committed to the R & D, production and sales of high-quality alginate series and marine biological products. Products exported to Japan, South Korea, Europe and the United States and other countries and regions, won the trust and praise of customers. The sodium alginate dryer designed by our company for haizhilin company is lzg1800 / 9 spiral vibration dryer.
Overview of sodium alginate
Sodium alginate is a kind of natural polysaccharide, which has the stability, solubility, viscosity and safety required by pharmaceutical excipients. Sodium alginate can be used as thickener, stabilizer, emulsifier, dispersant, gelling agent, coating agent, suspending agent, artificial semi permeable membrane, mordant and so on. It is widely used in medicine, printing and dyeing, chemical industry, food and other industries. The technological process of sodium alginate: dry or wet seaweed (algae) is crushed, washed, extracted with strong alkali water and clarified to obtain crude alginate solution. After being precipitated by calcium chloride, colored calcium alginate is obtained. After decolorization and deodorization, acid treatment is used to remove soluble impurities to obtain alginate precipitation. Sodium alginate is obtained by reacting with sodium carbonate, and then sodium alginate powder is obtained by drying, crushing and sieving.
Sodium alginate dryer:Qingdao haizhilin Biotechnology Development Co., Ltd. is committed to the R & D, production and sales of high-quality alginate series and marine biological products. Products exported to Japan, South Korea, Europe and the United States and other countries and regions, won the trust and praise of customers. The sodium alginate dryer designed by our company for haizhilin company is lzg1800 / 9 spiral vibration dryer.
Overview of sodium alginate dryer:. Thus, the material can be dried.
Main features of sodium alginate dryer are as follows:
The hot air passes through the material layer for many times and flows reversely with the material, so that the heat exchange is sufficient and the thermal efficiency is high.
Compact structure and small floor area.
The residence time of materials in the bed can be adjusted, and the operation is convenient.
When the material moves circumferentially from bottom to top along the spiral bed, the material itself also jumps, which increases the contact between the material and the hot air and enhances the drying effect.
Continuous feeding and discharging is suitable for production line operation, and easy to meet the "GMP" specification, which can replace the traditional box drying.
There is no damage to the surface and shape of the material, which not only ensures the roundness of the pill, but also greatly reduces the crushing rate of the pill.
Technical specification of sodium alginate dryer:
model |
LZG-1.0 |
LZG-1.2 |
LZG-1.4 |
LZG-1.6 |
LZG-1.8 |
diameter (mm) |
1000 |
1200 |
1400 |
1600 |
1800 |
Vibration motor power (kw) |
2×1.1 |
2×1.1 |
2×1.5 |
2×1.5 |
2×2.2 |
Dimensions(m) |
1.2×1.2×2.7 |
1.4×1.4×2.7 |
1.6×1.6×3.3 |
1.8×1.8×3.3 |
2.0×2.0×3.3 |
weight (kg) |
1400 |
1680 |
2800 |
3100 |
3800 |
Inlet air temperature (℃) |
60-200 |
60-200 |
60-200 |
60-200 |
60-200 |
Air volume(m3/h) |
1487 |
2380 |
3721 |
4462 |
5930 |
