Description

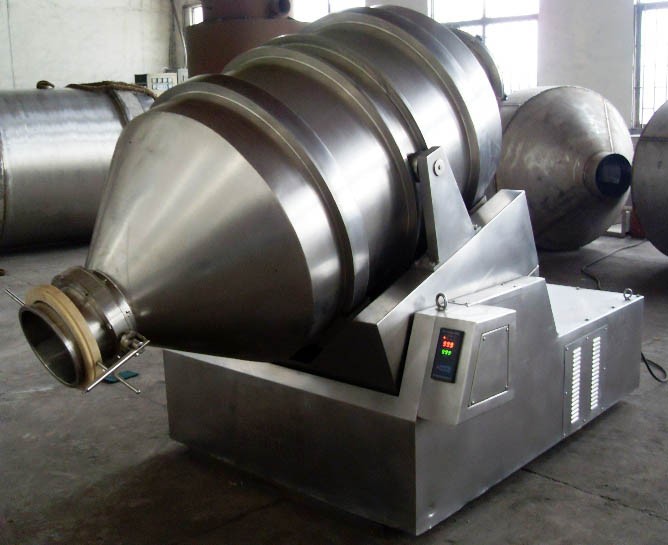

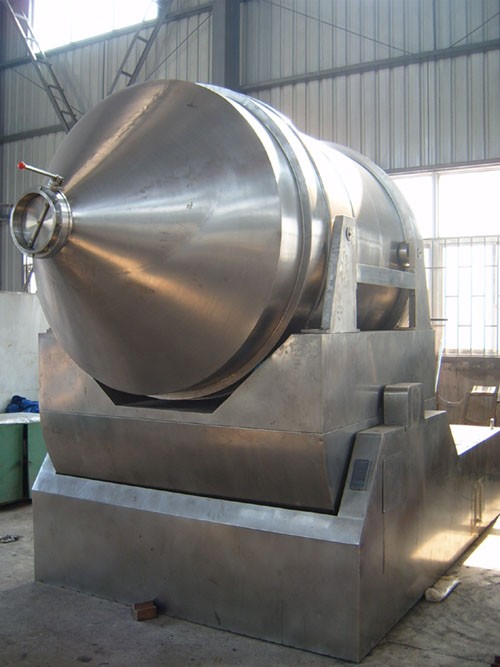

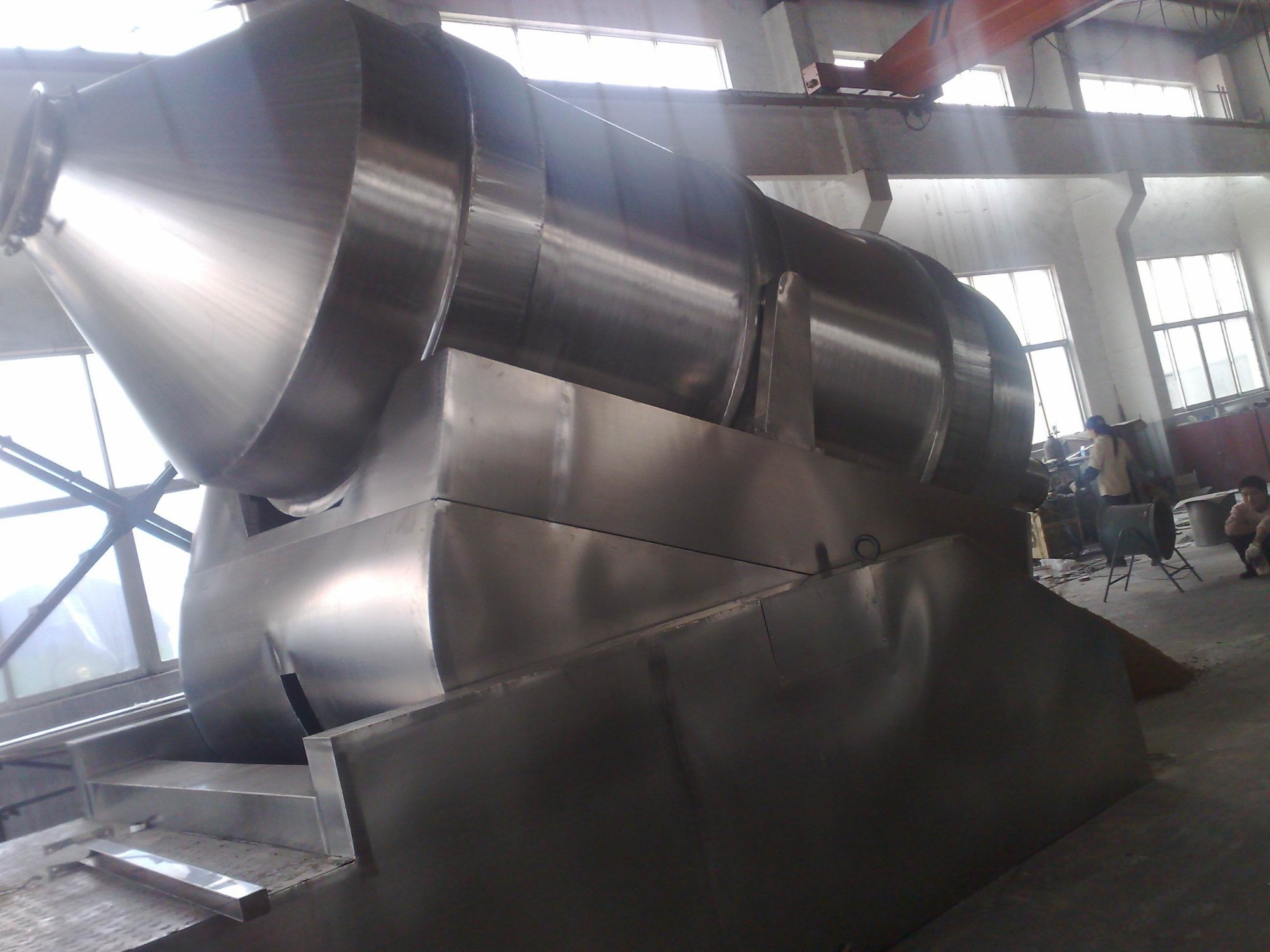

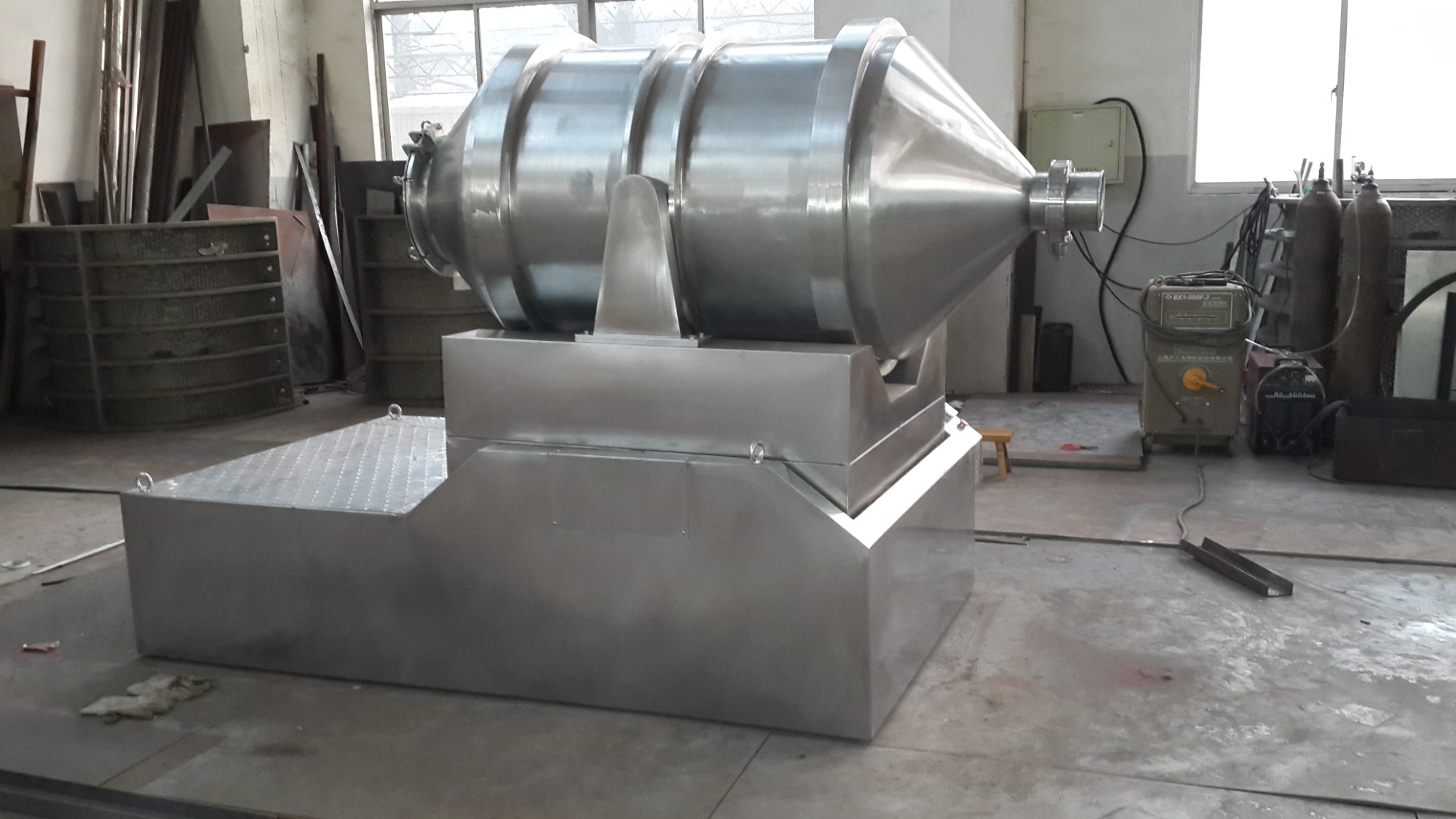

EYH Series 2 D Motion Mixer
WORKING PRINCIPLE
EYH Series 2 D Motion Mixer consists of three main parts, which are rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack and supported by four wheels, and its axial fixation is done by two stop-wheels. Two of four wheels are driven by rotating power system to rotate the cylinder. The swinging rack is driven by a set of crankshaft swinging bar, which is mounted on the frame, and the swinging rack is supported on the frame as well.
FEATURES
EYH Series 2 D Motion Mixer (2D mixer & 2D blender) can make two motions at the same time. One motion is the rotation of the cylinder and the other motion is swing of the cylinder along the swinging rack. The materials will be rotated when the cylinder is rotating and mixed when the cylinder is swinging left and right. As a result of two motions, materials can be fully mixed in a short time. This mixer is suitable for mixing of power and granule materials.
TECHNICAL PARAMETERS
|
Model |
Volume（L） |
Load Factor |
Loading Weight |
Overall Dimension（mm） |
Power（kw) |
||||||
|
A |
B |
C |
D |
M |
H |
Rotation |
Swing |
||||
|
EYH100 |
100 |
0.5 |
40 |
860 |
900 |
200 |
400 |
1000 |
1500 |
1.1 |
0.75 |
|
EYH300 |
300 |
0.5 |
75 |
1000 |
1100 |
200 |
580 |
1400 |
1650 |
1.1 |
0.75 |
|
EYH600 |
600 |
0.5 |
150 |
1300 |
1250 |
240 |
720 |
1800 |
1850 |
1.5 |
1.1 |
|
EYH800 |
800 |
0.5 |
200 |
1400 |
1350 |
240 |
810 |
1970 |
2100 |
1.5 |
1.1 |
|
EYH1000 |
1000 |
0.5 |
350 |
1500 |
1390 |
240 |
850 |
2040 |
2180 |
2.2 |
1.5 |
|
EYH1500 |
1500 |
0.5 |
550 |
1800 |
1550 |
240 |
980 |
2340 |
2280 |
3 |
1.5 |
|
EYH2000 |
2000 |
0.5 |
750 |
2000 |
1670 |
240 |
1100 |
2540 |
2440 |
3 |
2.2 |
|
EYH2500 |
2500 |
0.5 |
950 |
2200 |
1850 |
240 |
1160 |
2760 |
2600 |
4 |
2.2 |
|
EYH3000 |
3000 |
0.5 |
1100 |
2400 |
1910 |
280 |
1220 |
2960 |
2640 |
5 |
4 |
|
EYH5000 |
5000 |
0.5 |
1800 |
2700 |
2290 |
300 |
1440 |
3530 |
3000 |
7.5 |
5.5 |
|
EYH10000 |
10000 |
0.5 |
3000 |
3200 |
2700 |
360 |
1800 |
4240 |
4000 |
15 |
11 |
|
EYH12000 |
12000 |
0.5 |
4000 |
3400 |
2800 |
360 |
1910 |
4860 |
4200 |
15 |
11 |
|
EYH15000 |
15000 |
0.5 |
5000 |
3500 |
3000 |
360 |
2100 |
5000 |
4400 |
18.5 |
15 |
Notes: The material bulk specific gravity is calculated based on 0.6g / cm3; please indicate if the bulk specific gravity excess this figure before placing order.
