Description
Key words: electroplating wastewater
environmental protection and drying engineering
Classification: waste water treatment engineering
Case overview: electroplating wastewater contains a large number of
hydrochloric acid, zinc, copper and other * ions and organic brightener, which
is toxic. Electroplating wastewater discharged into the natural water body will
cause serious pollution to the ecological environment. Some of them also
contain carcinogenic, teratogenic and mutagenic toxic substances, which are
very harmful to human beings. Therefore, the electroplating wastewater must be
recycled seriously to eliminate or reduce its environmental pollution. So,
follow the country
Electroplating wastewater contains a large number of hydrochloric acid, zinc,
copper and other * ions and organic brighteners, which are toxic.
Electroplating wastewater discharged into natural water will cause serious
pollution to the ecological environment. Some of them also contain
carcinogenic, teratogenic and mutagenic toxic substances, which are very
harmful to human beings. Therefore, the electroplating wastewater must be
recycled seriously to eliminate or reduce its environmental pollution.
Therefore, it is necessary to follow the national initiative to treat the waste
water after the fixed telephone, compared with the direct water treatment, it
will be more convenient and safe in the process of operation and
transportation.
What equipment is used to treat electroplating wastewater? Our company
specializes in the design and production of electroplating wastewater
dehydration and drying equipment. In order to further develop the environmental
protection market, our company has developed a variety of energy-saving and
environmental protection drying equipment. The drum scraper drying equipment
manufactured by our company can effectively dry electroplating wastewater, make
it more convenient and safe in the transportation and treatment process, and
achieve better environmental protection pretreatment effect.
Project overview

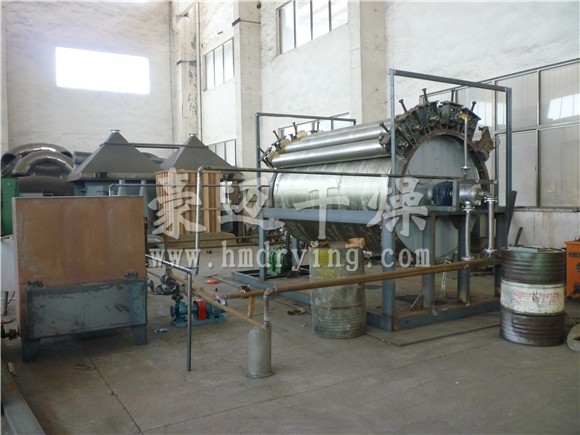

This equipment is a drum scraper dryer, in our company drum scraper design,
scraper blade fixture has adjustable, to ensure sufficient stiffness and its
own sealing. In the design of drum body of our company, the cylinder is made of
rolled welded structure, which is stress relieved to ensure no thermal
deformation in use; at the same time, according to the bad nature of service
conditions, the shaft head can adopt the hot sleeve structure, which greatly
improves the service life than the welding structure.
Overview of dewatering and drying equipment for electroplating wastewater
Drum scraper dryer is attached to the rotary drum cylinder, the liquid phase
material in the way of heat conduction for continuous operation of drying
equipment. The material film is formed on the outer wall of the drum rotating
at a certain speed by the material liquid and the distributing device, and is
heated by the hot drum wall of the heating medium (steam or heat conducting
oil) continuously flowing in. The material film is scraped off by a scraper
after drying.
The drum scraper dryer is mainly composed of drum (including cylindrical
cylinder, end cover, end shaft and bearing), film distributing device
(including feed liquid pan), scraping device (including scraper, support frame
with pressure regulator, etc.), transmission device (including motor and
reducer), inlet and outlet device of heating medium (steam or heat transfer
oil) and liquid discharge device.
Principle of new environmental protection dryer for electroplating wastewater
The double drum scraper dryer is a rotary continuous drying equipment with
internal heating conduction. The rotating drum adheres to a thick film through
its lower trough. The heat is transported to the inner wall of the drum through
the pipeline, and then to the outer wall of the drum. The moisture in the film
is evaporated and dehumidified, and the material containing moisture is dried.
The dried materials are scraped away from the drum by the scraper installed on
the surface of the drum to the screw conveyor under the scraper, and then the
dry materials are concentrated through the screw conveyor.
Characteristics of electroplating wastewater dryer
The roller has high precision and less thermal deformation. After welding, the
whole drum is heat stress relieved to reduce the deformation of the cylinder.
The surface of the drum is processed by rough turning, fine turning and
grinding machine, which has the characteristics of high precision and small
deformation in the later stage.
The service life is long, the surface of the roller is plated with hard
chromium, and the surface hardness reaches hrc60-65. Make sure that the roller
is under the friction of scraper for a long time, the surface wear is small and
the service life is long.
The scraper system is reliable and adopts special pneumatic pressing device,
which has the characteristics of adjustable and controllable pressing force. It
can timely adjust the status of scraper according to the adhesion of materials.
The equipment occupies less land and the investment of workshop is low.
The equipment has low failure rate, reliable operation and simple operation.
Low energy consumption. Due to the adoption of steam conduction heating mode, it has remarkable energy saving effect. The average steam consumption is 1.5 tons per ton of water. Compared with the traditional spray drying operation, energy saving is about 40%.
Installation of drum scraper dryer
The machine is installed according to the general layout, the ground should be
flat, the steam pipe inlet should be equipped with pressure gauge and safety
valve, and the steam inlet flange should be firmly connected.
Adaptive materials
It is suitable for drying liquid or viscous materials in chemical, dye,
pharmaceutical, food, metallurgy and other industries.
maintain
1. After the equipment is used, the residue of drum scraper dryer should be
cleaned to keep the whole machine clean.
2. Bearings are often coated with compound calcium grease, drum scraper dryer
and worm reducer should be maintained with lubricating oil.
3. The grounding wire of the electric control cabinet and the host machine
shall be kept in good condition at any time, and there shall be no leakage.
4. Adjust the tension of the drive chain frequently to make the tension in
normal state.
5. Regularly check and verify the pressure gauge, ammeter and voltmeter
regularly to make all kinds of instruments and instruments in normal working
state.
6. Check the connection of motor, reducer, chain wheel, chain and bearing seat
regularly to keep them in a tight state.
debugging
After the machine is installed, the test run should be carried out first
Click the main motor to observe that the rotation direction of the main drum is
correct.
Observe whether the main drum and transmission parts rotate flexibly, whether
the steam inlet and outlet are connected, and whether the pressure gauge is
within the working pressure range.
Start the motor, the main cylinder moves smoothly and steadily. When the
temperature is increased, after adding the material, the motor speed and the
uniformity of the material on the roller can be adjusted to control the final
water content.
Start the auger motor, output the dry finished materials, and adjust the rotation
speed of the winch motor according to the amount of dried products.
Technical specification of drum scraper dryer
Specifications |
Drum size |
Effective heating area m2 |
Drying
capacity |
Steam consumption kg / h |
Motor power kw |
Dimensionsmm |
weight kg |
HG-600 |
Φ600×800 |
1.12 |
40-70 |
100-175 |
2.2 |
1700×800×1500 |
850 |
HG-700 |
Φ700×1000 |
1.65 |
60-90 |
150-225 |
3 |
2100×1000×1800 |
1210 |
HG-800 |
Φ800×1200 |
2.26 |
90-130 |
225-325 |
4 |
2500×1100×1980 |
1700 |
HG-1000 |
Φ1000×1400 |
3.30 |
130-190 |
325-475 |
5.5 |
2700×1300×2250 |
2100 |
HG-1200 |
Φ1200×1500 |
4.24 |
160-250 |
400-625 |
7.5 |
2800×1500×2450 |
2650 |
HG-1400 |
Φ1400×1600 |
5.28 |
210-310 |
525-775 |
11 |
3150×1700×2800 |
3220 |
HG-1600 |
Φ1600×1800 |
6.79 |
270-400 |
675-1000 |
11 |
3350×1900×3150 |
4350 |
HG-1800 |
Φ1800×2000 |
8.48 |
330-500 |
825-1250 |
15 |
3600×2050×3500 |
5100 |
HG-1800A |
Φ1800×2500 |
10.60 |
420-630 |
1050-1575 |
18.5 |
4100×2050×3500 |
6150 |
Note: if the customer needs, we can design and manufacture the upper feeding double drum dryer for customers.
