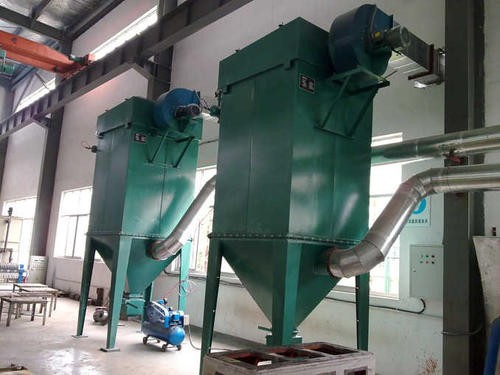

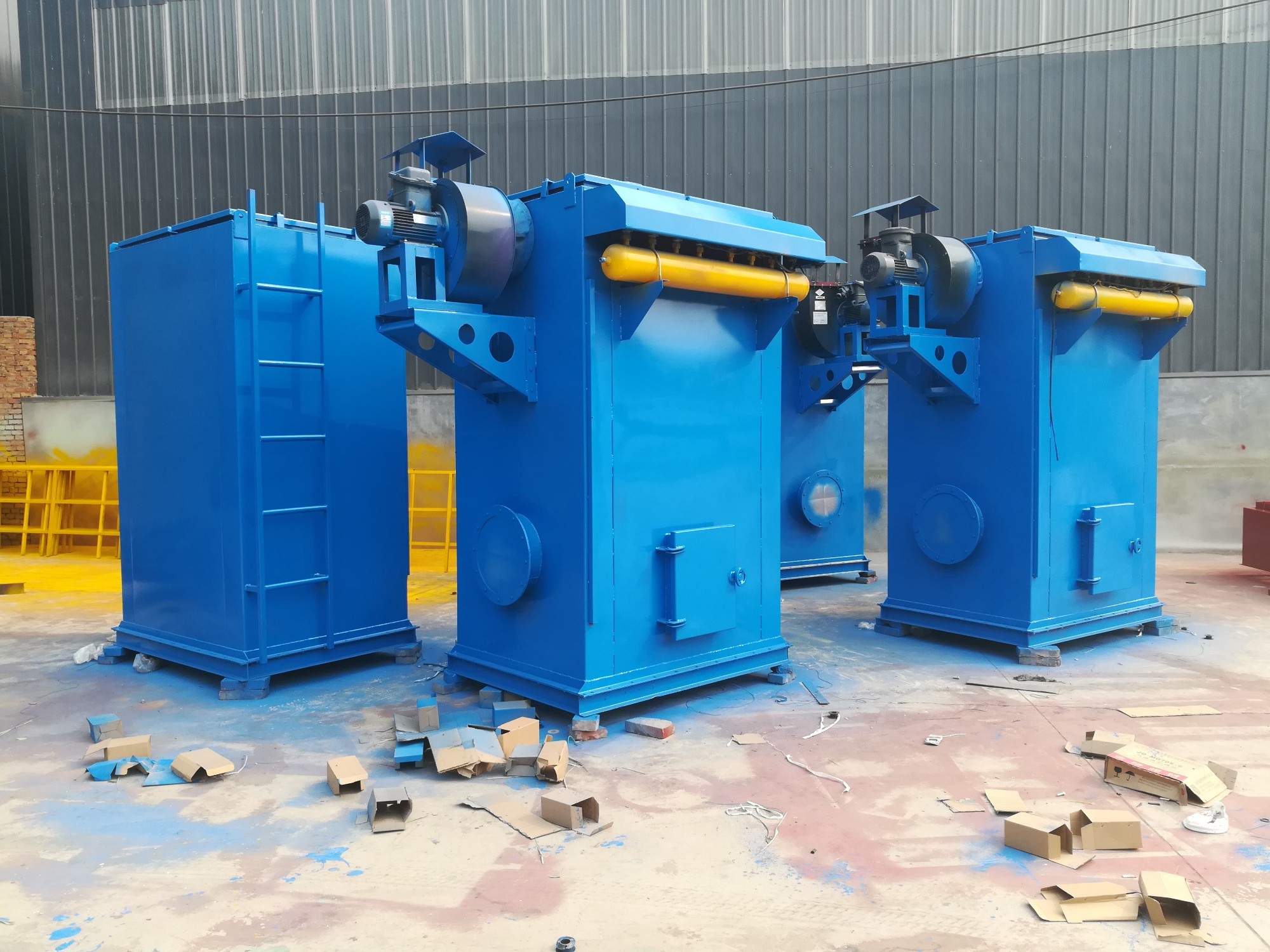

MC Series Pulse Bag Filter
DESCRIPTION
The technology of MC- II Pulse Bag Filter is the amended and improved on the basis of MC- I.
FEATURES
1. High dust removing efficiency
2. Large Air Processing Capacity
3. Stable the operation performance
4. Easy operation and maintenance,
5. It is not easy to build up the powder and its application is wide and so on.
APPLICATION
The device is widely used for the ventilation,
dust removing and powder restoration in the grain, food, feed, metallurgical,
chemical, building material, medical, and other industries.
TECHNICAL PARAMETERS
|
Parameter |
Model |
||||||
|
MF48 |
MF60 |
MF72 |
MF84 |
MF96 |
MF108 |
MF120 |
|
|
Filter area（m2） |
36.2 |
45.2 |
54.3 |
63.3 |
72.4 |
81.4 |
90.5 |
|
Quantity of filter bag (piece) |
48 |
60 |
72 |
84 |
96 |
108 |
120 |
|
Filtered air amount (m3/h) |
6510-8680 |
8130-10840 |
9770-13000 |
11400-1520 |
13000-17370 |
14650-19530 |
16290-21700 |
|
Quantity of solenoid valve |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Power(kw) |
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
2.2 |
2.2 |
|
Bag size(mm) |
120×2000 |
||||||
|
Speed of filter air(m/min) |
3-4 |
||||||
|
Ratio of air leakage (%) |
≤5 |
||||||
|
Pressure of praying and blowing (MPa) |
＞0.4-0.6 |
||||||
|
Resistance of equipment (Pa) |
＜1200 |
||||||
|
Efficiency of dust removing (%) |
≥99.9（filtering material can be selected as per the powder characteristics） |
||||||
